罗德与施瓦茨RS MillivoltmeterURV5

Voltage, level, power measurements; trend indication

Key Facts

• Two test inputs

• High accuracy through mP-control-led error correction: 1%

• Dynamic range >94 dB

• IEC/IEEE-bus interface

• Readout in all standard units with selectable reference impedance; relative measurements

• Optional DC output

• PEP measurement

• Brief Description

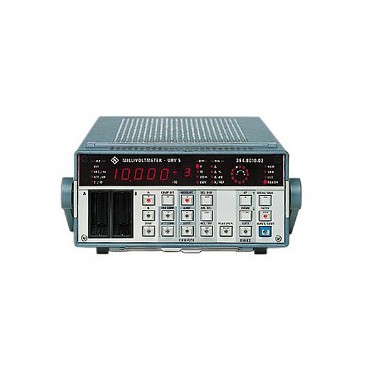

  Millivoltmeter URV5 is a broadband voltage, level and power meter of high accuracy and sensitivity. It is suitable both for manual operation and for use in systems. A wide choice of individually calibrated probes and sensors allows URV5 to be used for a great variety of measurements:

• With RF probe and DC probe for no-load AC and DC voltage measurements

• Voltage (and power) measurements in coaxial 50 W and 75 W systems using low-reflection and low-loss insertion units

• Power measurements up to 26.5 GHz using Power Sensors NRV-Z1 to -Z6

•
