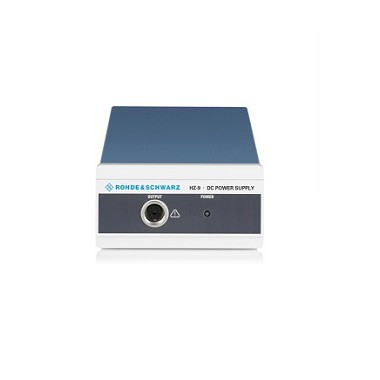

罗德与施瓦茨RS Power SupplyHZ-9
For active antennas and EMI accessories
Key Facts
Low-noise linear regulator
Output voltage ± 10 V
Load capacity up to 100 mA
Selectable AC power 115 V and 230 V
Instrument connection compatible with Rohde & Schwarz measuring receivers
Brief Description
Brief Description
The R&S®HZ--9 power supply is a bipolar, constant voltage source for the R&S®HFH2-Z2 and R&S®HFH2-Z6 active antennas, the R&S®ESH2-Z2 active voltage probe, the R&S®EZ--12 antenna impedance converter and the R&S®HZ-14 probe set for E and H near-field measurements in situations where these instruments cannot be supplied directly from a measuring receiver or when it is not possible to connect the instrument to the measuring receiver (standalone operation). The R&S®HZ--9 power supply can also be used in other applications.
Included accessories: Manual, power cable, three 12-pin cable connectors
