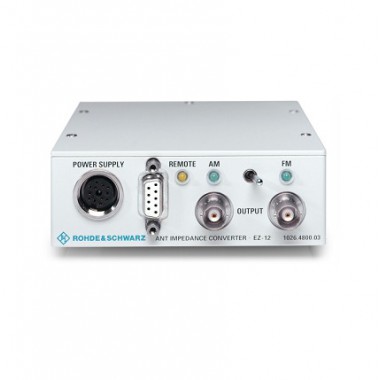

罗德与施瓦茨RS Antenna Impedance ConverterEZ-12

for interference measurements on vehicle antennas to CISPR25

Key Facts

Antenna Impedance Converter EZ-12 is a wideband matching unit with high-impedance input or test receivers and spectrum analyzers with low-impedance inputs. It is used for measuring interference voltages in the long-, medium- and shortwave bands at the output of vehicle-mounted antennas. The flat frequency response plus the high sensitivity and overload capacity guarantee reliable results. A remotecontrolled switch allows automatic switchover for interference voltage measurements in the FM range at the same antenna.

• Frequency range: 150 kHz to 30 MHz (120 MHz)

• Flat frequency response

• High sensitivity

• High overload capacity

• Calibration to future CISPR25

• Remote-controlled FM range switch
