首页 > 供应产品 > 罗德与施瓦茨RS Coupling NetworkENY81-CA6

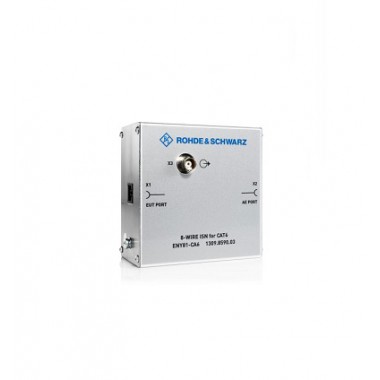

罗德与施瓦茨RS Coupling NetworkENY81-CA6
单价 面议对比
询价 暂无
浏览 18
发货 广东深圳市付款后3天内
品牌 罗德与施瓦茨RS
过期 长期有效
更新 2024-08-23 11:36

详细信息

罗德与施瓦茨RS Coupling NetworkENY81-CA6

For disturbance and immunity measurements on telecommunications ports


Key Facts

  • Eight-wire network

  • Disturbance measurements in line with CISPR 22:2008 and EN 55022:2010 as well as CISPR 32 and EN 55032 (150 kHz to 30 MHz)

  • Immunity measurements in line with CISPR 24 and EN 55024 (150 kHz to 80 MHz)

  • Compliance with CISPR 16-1-2

  • 75 dB longitudinal conversion loss (LCL)

  • High transmission bandwidth for wanted signal (250 MHz)

  • Brief Description

    The R&S®ENY81-CA6 coupling network is used for performing disturbance and immunity measurements on unshielded symmetrical telecommunications ports for cable category Cat 6.

    Features & Benefits

    Functional description

    The R&S®ENY81-CA6 terminates the EUT interface with 150 Ω (asymmetrical or common-mode impedance) and couples the EUT's asymmetrical voltage to the test receiver with a voltage division factor of typ. 9.5 dB. The wanted symmetrical (differential-mode) signal passes through the coupling network almost without attenuation up to a bandwidth of 250 MHz (valid for a symmetrical impedance of 100 Ω). At the same time, the coupling network decouples the test circuit from disturbance effects (disturbance voltage, impedance) at the AE port.

    Mechanical design
