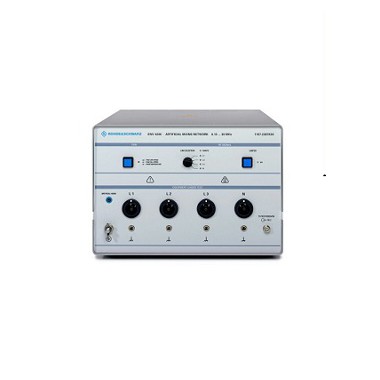

罗德与施瓦茨RS V-NetworkENV-4200

for RFI voltage measurements at high currents

Key Facts

• Frequency range 150 kHz to 30 MHz

• V-network in line with CISPR, EN, VDE, ANSI

• Impedance 50 µH//50 Ω (magnitude and phase) in line with CISPR 16-1-2 Amd. 2:2006

• Artificial hand

• Continuous current up to 4 × 200 A

• Air-core design

• Built-in pulse limiter (can be switched off)

• Remote control with TTL levels (compatible with Rohde & Schwarz test receivers)

• Calibrated to CISPR 16-1-2 and ANSI C63.4

• Brief Description

  The R&S®ENV-4200 V-network meets the requirements of CISPR 16?1?2, VDE 0876, and ANSI C 63.4 for V-networks with the impedance in the frequency range 150 kHz to 30 MHz. It is used for measuring RFI voltages on AC supply connections of EUTs carrying very high currents. It is based on air-core inductances and contains an artificial hand
