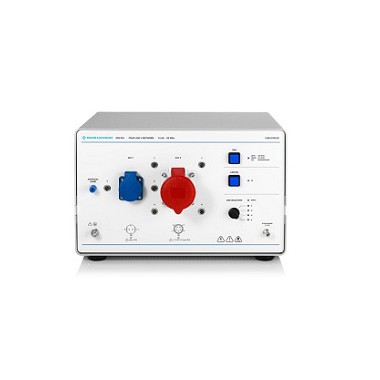

罗德与施瓦茨RS Four-Line V-NetworkENV432

For disturbance voltage measurements on three‑phase EUTs

Key Facts

• Frequency range from 9 kHz to 30 MHz

• Power-handling capacity up to 32 A, constant current

• Simulated impedance (50 μH + 5 Ω) || 50 Ω in line with CISPR 16-1-2

• V-network in line with CISPR, EN, VDE, ANSI, FCC Part 15 and MIL-STD-461D, E and F

• Calibrated in line with CISPR 16-1-2 and ANSI C63.4

• Brief Description

  The R&S®ENV432 four-line V-network meets the requirements of CISPR 16?1?2, EN 55016-1-2 and ANSI C63.4 for V-networks with a simulated impedance of (50 μH + 5 Ω) || 50 Ω in the frequency range from 9 kHz to 30 MHz. The R&S®ENV432 comes with a Schuko socket (EUT 1) and a CEE 32 A socket (EUT 2) for connecting the equipment under test (EUT).
