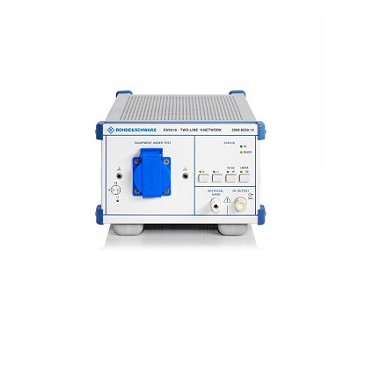

罗德与施瓦茨RS Two-Line V-NetworkENV216

For disturbance voltage measurements on single-phase EUTs

Key Facts

• Frequency range 9 kHz to 30 MHz

• Power-handling capacity up to 16 A, constant current (country-specific)

• Simulated impedance (50 μH + 5 Ω) || 50 Ω in line with CISPR 16-1-2 Amd. 2:2006

• V-network in line with CISPR, EN, VDE, ANSI, FCC Part 15 and MIL-STD-461 D, E and F

• Calibrated in line with CISPR 16-1-2 and ANSI C63.4

• Brief Description

  The R&S®ENV216 two-line V-network meets the requirements of CISPR 16-1-2, EN 55016-1-2, VDE 0876 and ANSI C63.4 for V-networks with a simulated impedance of (50 μH + 5 Ω ) || 50 Ω in the frequency range 9 kHz to 30 MHz. A female connector with protective earth contacts is provided for connecting the EUT. Various models with country-specific connector systems are available.
