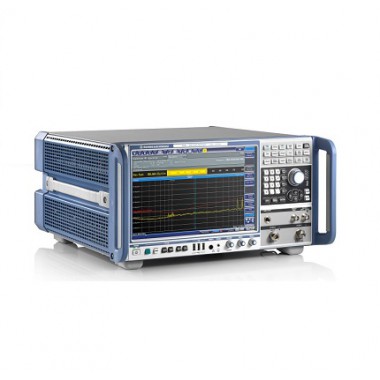

罗德与施瓦茨RS Test ReceiverESW EMI

Excellent RF characteristics and high measurement speed

Key Facts

• Frequency ranges 2 Hz to 8 GHz, 2 Hz to 26.5 GHz and 2 Hz to 44 GHz

• Compliant with CISPR16-1-1, ANSIC63.2, MIL?STD?461 and FCC

• Highest dynamic range and highest accuracy for demanding certification measurement

• Ultrafast measurements with FFT-based time domain scan

• Preselection with selectable highpass filters and notch filters for the ISM bands

• EMI test receiver and signal and spectrum analyzer in a single box

• Realtime spectrum analysis (R&S®ESW-K55 option) with 80 MHz bandwidth and spectrogram function

• MultiView function for straightforward display of multiple operating modes on a single screen

• Brief Description

  The R&S®ESW is an EMI test receiver with outstanding RF characteristics, including high dynamic range und measurement accuracy. It meets the most stringent requirements for certification measurements in line with CISPR, EN, MIL?STD-461, DO?160 and FCC. With its FFT-based time domain scan, the R&S®ESW captures and weights disturbance spectra in virtually no time. The instrument’s realtime spectrum analysis capability with spectrogram function permits a detailed analysis of disturbance signals and their history. MultiView mode delivers a straightforward display of results, even for multiple operating modes.
