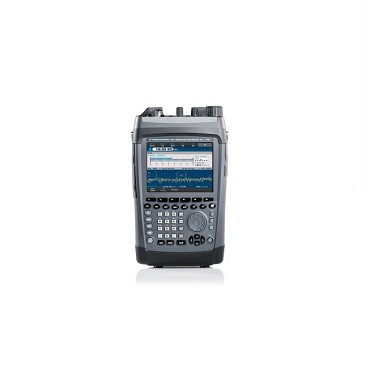

罗德与施瓦茨RS Portable ReceiverPR100
On-site radiomonitoring from 9 kHz to 7.5 GHz
Key Facts
Fast panorama scan across the entire frequency range from 9 kHz to 7.5 GHz
10 MHz IF spectrum and demodulation with bandwidths from 150 Hz to 500 kHz
Spectrum and spectrogram (waterfall) display on 6.5" color screen
Storage of measurement data to receiver's built-in SD card
LAN interface for remote control and data output
Ergonomic and rugged design for portable use
Low weight: 3.5 kg including battery
Manual location of emissions with the R&S®HE400 active directional antenna (9 kHz to 7.5 GHz)
Automatic location of emissions with direction finding algorithms (20 MHz to 6 GHz)
Display of digital maps on the R&S®PR100; triangulation based on multiple, manually or automatically determined DF results
Brief Description
The R&S®PR100 portable receiver has been specifically designed for radiomonitoring applications in the field. The receiver’s functions and control concept have been optimized for monitoring tasks. In addition, it can be used for a variety of other applications.
The R&S®PR100 operates in a wide frequency range from 9 kHz to 7.5 GHz. Whether used for monitoring emissions, detecting interference or locating miniature transmitters, the rece
