罗德与施瓦茨RS Universal Radio Network Analyzer

Scanner for drive tests and I/Q streaming

Key Facts

• User-definable input frequency range from 30 MHz to 6 GHz

• Two independent RF and signal processing paths, each with a bandwidth of up to 20 MHz

• Integrated preselection for high intermodulation suppression while dynamic range is high

• Support of LTE-FDD and TD-LTE

• Support for TD-SCDMA

• Parallel measurements in GSM, WCDMA, LTE, CDMA2000®, 1xEV-DO, TETRA and WiMAX™ networks with the R&S®ROMES4 drive test software

• Spectrum measurements with the RF power scan option

• I/Q baseband streaming and capturing

• Integrated GPS

• Brief Description

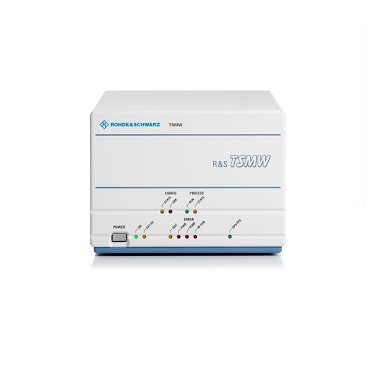

  The R&S®TSMW universal radio network analyzer is a platform for optimizing all conventional wireless communications networks. Two frontends for any input frequency from 30 MHz to 6 GHz, preselection and software-defined architecture offer unsurpassed performance while providing maximum flexibility. In addition to functioning as a scanner for wireless communications networks, the R&S®TSMW is also an ideal digital I/Q baseband receiver.
