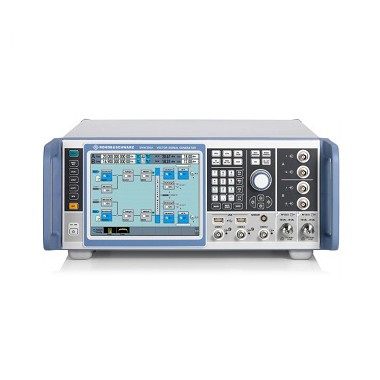

罗德与施瓦茨RS Vector Signal GeneratorSMW200A

The fine art of signal generation

Key Facts

For all your needs

• Frequency range from 100 kHz to 3 GHz, 6 GHz, 12.75 GHz, 20 GHz, 31.8 GHz or 40 GHz

• Optional second RF path with 100 kHz up to 3 GHz, 6 GHz, 12.75 GHz or 20 GHz

• Versatile configuration: from single-path vector signal generator to multichannel MIMO receiver tester

• Ideal for MIMO, MSR or LTE-Advanced applications thanks to up to eight signal sources and up to 32 fading channels

• Modular architecture for optimal adaptation to the application at hand

Simplify your setup

• Easy generation of complex signals

• Max. eight baseband generators on two internal baseband modules with realtime coder and ARB

• Internal digital adding of baseband signals, even with frequency and level offset

• Wideband baseband and vector signal generator in one box

• Support of all important digital standards such as 5G air interface candidates, LTE (up to Release 12), 3GPP FDD/HSPA/HSPA+, GSM/EDGE/EDGE Evolution,
  CDMA2000®/1xEV-DO, WLAN IEEE 802.11a/b/g/n/j/p/ac/ad

• No separate PC software required for digital standards

• Generation of radar signal scenarios for module, receiver and DFS tests
