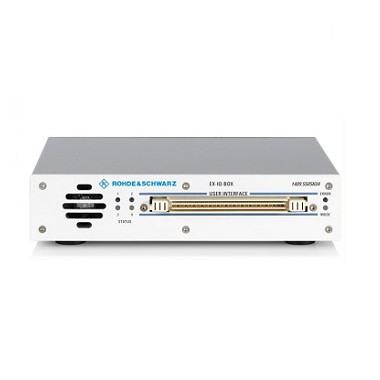

罗德与施瓦茨RS Box Digital Signal Interface ModuleEX-IQ
Conversion of digital I/Q signals to and from the device under test
Key Facts
Conversion of digital I/Q signals to and from the device under test
Flexible user-defined digital I/Q interface settings
Two breakout boards included (single-ended, differential connectors) for connection of the device under test
Easy interface configuration via enclosed R&S®DigIConf software
Transient recorder in R&S®DigIConf for visual control of generated digital signals
Optional support for CPRI™
Brief Description
The R&S®EX-IQ-Box is a digital interface module that provides flexible digital baseband inputs or outputs for signal generators, signal analyzers and communications testers from Rohde & Schwarz. The main application field of this device is the conversion of digital I/Q signals of R&S instruments into user defined or standardized digital signal formats and vice versa.
For applications with user defined protocols the R&S®EX-IQ-Box enables either serial or parallel transmission of I/Q signals to a DUT, including variable clock modes, various data rates as well as different logical signal levels. The connection to the device under test is done in a straight-forward approach via adapter boards (=breakout boards) that are plugged directly to the R&S®EX-IQ-Box.
In applications with standardized protocols, the R&S
