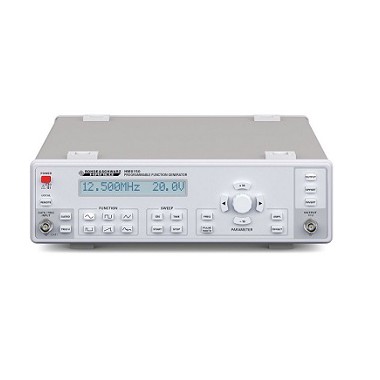

罗德与施瓦茨RS Arbitrary Function GeneratorHM8150

Frequency range: 10 mHz to 12.5 MHzTriangle waveforms up to 250 kHz

Key Facts

• Frequency range: 10 mHz to 12.5 MHz

• Triangle waveforms up to 250 kHz

• Output voltage: 10 mVpp to 10 Vpp (at 50 Ω)

• Total Harmonic Distortion: 0.05 % (f ≤ 100 kHz)

• Waveform modes: sine, square, triangle/ramp, pulse and arbitrary waveforms

• External amplitude modulation up to 20 kHz

• External connectors: GATE (I), TRIGGER (I/O), SWEEP (O), MODUALTION (I)

• Arbitrary waveform generator: 40 MSa/s, 12 bit, 4096 Pts

• PC software (free of charge) to easily create user-defined waveforms

• RS-232/USB dual interface, IEEE-488 (GPIB) optional
