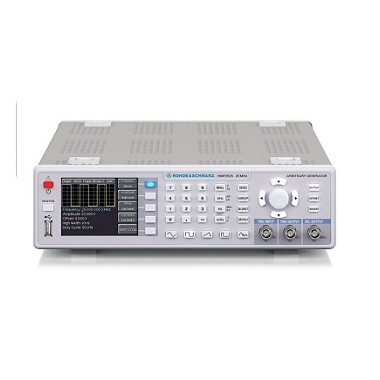

罗德与施瓦茨RS Arbitrary Function GeneratorHMF2525/HMF2550

Frequency range: 10 μHz to 25/50 MHz

Key Facts

• Frequency range: 10 μHz to 25/50 MHz

• Triangle waveforms up to 10 MHz

• Output voltage: 5 mV to 10 V (Vpp) (into 50 Ω)

• Total harmonic distortion of 0.04 % (f < 100 kHz)

• Waveforms: sine, square, triangle/ramp, pulse, arbitrary (incl. predefined waveforms such as white/pink noise, cardinal sine, exponential rise/fall)

• Modulation modes: AM, FM, pulse, PWM, FSK (internal and external)

• External connectors: TRIGGER (I/O), SWEEP (O), MODULATION (I)

• External reference input/output (10  MHz) via BNC connector

• Arbitrary waveform generator: 250 Msample/s, 14  bit, 256  kpoint

• PC software (free of charge) to easily create user-defined waveforms

• Oscillographic signal display in realtime

• Front USB connector to easily save and recall waveforms and settings

• USB/RS-232 dual interface for remote control

• Fanless design
