罗德与施瓦茨RS Mixed Signal, RTE-B1

5 Gsample/s, 16 channels, 100 Msample per channel

Key Facts

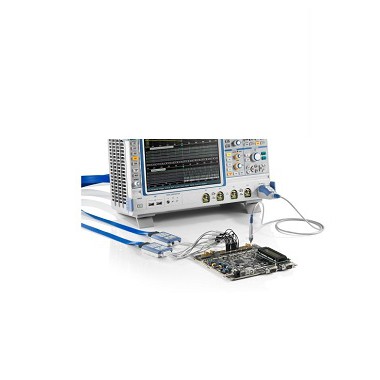

Fast and precise testing of embedded designs: The R&S®RTE-B1 mixed signal option turns the R&S®RTE into an easy-to-use mixed signal oscilloscope (MSO) with 16 digital channels.

• More signal details thanks to high time resolution across the entire memory depth

• Precise triggering on signal events

• High acquisition and analysis rate for fast fault finding

• Straightforward display of digital signals

• Analysis functions

• Analysis of serial protocols, even with digital channels

• Low test point loading due to active probe solution

Features & Benefits

More signal details thanks to high time resolution across the entire memory depth

With a sampling rate of 5 Gsample/s, the R&S®RTE-B1 option provides a maximum time resolution of 200 ps for all digital channels. This sampling rate is available across the entire memory depth of 100 Msample per channel. As a result, the MSO option is even capable of detecting critical events such as narrow or widely separated glitches.

Precise triggering on signal events

The R&S®RTE-B1 offers numerous trigger types for debugging and analysis, such as edge, width, pattern and ser
