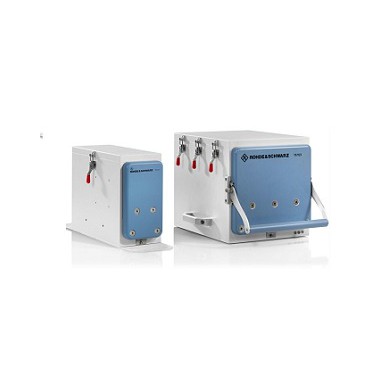

罗德与施瓦茨RS Shielded RF Test BoxesTS712x
Reliable RF tests on devices with radio interface
Key Facts
Wide frequency range from 300 MHz to 14 GHz
Rugged design for long service life
High shielding effectiveness
Low reflection due to use of absorbent material
Integrated RF connectors and filter feedthroughs
Automatically and manually operated versions
Narrow and wide versions for different sized DUTs
Antenna couplers for diverse technologies
Brief Description
The use of shielded RF boxes is a prerequisite for reliably testing radio interfaces. This is the only way to ensure that DUTs are not affected by interference from other, external test systems, which would distort measurement results, and also to prevent other external instruments or test systems from being affected by the testing of the radio interface. To meet these requirements, a test box must offer high shielding effectiveness, a good antenna coupling factor, and a rugged mechanical design for reproducible results.
The R&S®TS712x family of RF test boxes has been designed to meet the requirements of automatic production lines. These include long service life, rugged design and automatic opening and closing of the RF box. Featuring high shielding effectiveness over a wide frequency range, the RF test boxes perform tests on modules and devices with a radio interface in accordance with a wide variety of standards such as ISM, GSM/CDMA2000®/WCDMA, Bluetooth®, ZigBee®, WiMAX
