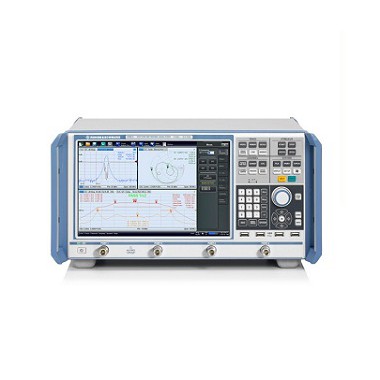

罗德与施瓦茨RS Vector Network AnalyzerZNB

Leading in speed, dynamic range and ease of operation.Frequency ranges from 9 kHz to 40 GHz

Key Facts

• Frequency range from 9 kHz up to 40 GHz

• Wide dynamic range of up to 140 dB

• Short sweep times, e.g. 4 ms for 401 points

• High temperature stability of typ. 0.01 dB/°C

• Wide power sweep range of 98 dB

• Wide range of IF bandwidths from 1 Hz to 10 MHz

• Manual and automatic calibration

• Large, high-resolution 12.1" screen

• Touchscreen user interface

• Two or four ports

• Four-port model with two independant generators

• Expansion to up to 48 ports using switch matrices

• Brief Description

  More than 60 years of experience in the field of vector network analysis pay off: Rohde & Schwarz sets new benchmarks with its R&S®ZNB family of vector network analyzers. These analyzers feature high measurement speed, outstanding precision and exceptional ease of operation.
