罗德与施瓦茨RS 手持频谱分析仪 FSH

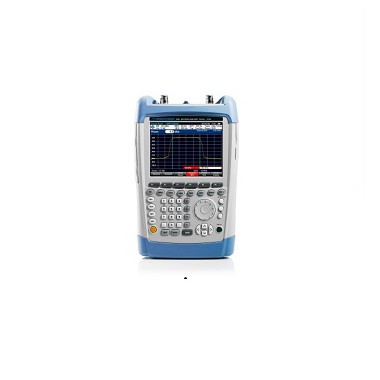

The R&S®FSH spectrum analyzer is rugged, handy and designed for use in the field.
Key Facts
Frequency range from 9 kHz to 3.6/8/13.6/20 GHz
High sensitivity (< –141 dBm (1 Hz), with preamplifier < –161 dBm (1 Hz))
20 MHz demodulation bandwidth for analyzing LTE signals
Low measurement uncertainty (< 1 dB)
Measurement functions for all important measurement tasks related to the startup and maintenance of transmitter systems
Internal tracking generator and VSWR bridge with built-in DC voltage supply (bias)
Two-port network analyzer
Rugged, splash-proof housing for rough work in the field
Easy handling due to low weight (3 kg with battery) and easy-to-reach function keys
Easy operation thanks to user configurable, automatic test sequences (wizard)
Brief Description
The R&S®FSH spectrum analyzer is rugged, handy and designed for use in the field. Its low weight, its simple, well-conceived operation concept and the large number of measurement functions make it an indispensable tool for anyone who needs an efficient measuring instrument for outdoor work.
The R&S®FSH is a handheld spectrum analyzer and – depending on the model and the options installed – a power meter, a cable and antenna tester and a two-port vector network analyze
