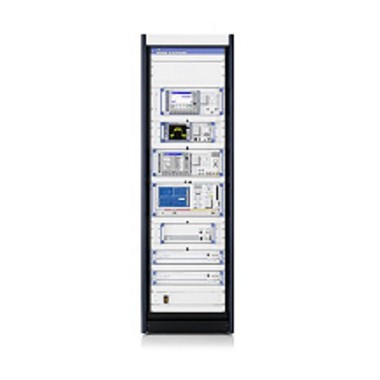

罗德与施瓦茨RS Test SystemTS8996 RSE
Fully automatic emission measurements on wireless communication equipment
Key Facts
Frequency range from 30 MHz to 18 (40) GHz
Radiated measurements in line with ETSI EN 301 489-n, FCC part 15 and 3GPP TS51.010 standards
Conducted spurious emission measurements from 100 kHz to 12.75 GHz on antenna connector of the DUT
The modular design of the filter bank makes technology upgrades and maintenance quick and easy
The R&S®EMC32/R&S®AMS32 Measurement Software contains open source software packages. Copies of the respective licenses are included in the 'R&S®EMC32 and R&S®AMS32 Measurement Software Open Source Acknowledgement'.- Please refer to the Download/Software area of this web site.
Brief Description
The R&S®TS8996 RSE test system is designed for EMI and radiated spurious emission tests on wireless devices. The test system is often combined with a semi-anechoic or fully-anechoic chamber. The high-sensitivity filters are contained in modular shielded units, eliminating the need for a shielded control-room. The R&S®TS8996 is applicable during R&D or for EMC type approval. Typical devices under test (DUTs) are mobile phones, cellular base stations, radio sets and other short-range devices.
The relevant standards for these DUTs stipulate a wide range of test setups and a wide and high frequency range (up to 40 GHz). All tests according to these standards can be performed with the R&S®TS8996. The test system can be easily adapted to customer-specific requirements.
